Twin set 2 x 8L/300 bar DIR convex WIDE bands set FABER

Twin set 2x 8L/300 bar with complete manifold and stainless steel tank bands.
Show more
514,29 €
List price: 571,43 €
pc
Add to Cart
In Stock
List Number: TWIN8/300DIR
Warranty:24 months
Manufacturer:Faber
Price excluding VAT:425,03 €
Description
Parametres
Files and Links

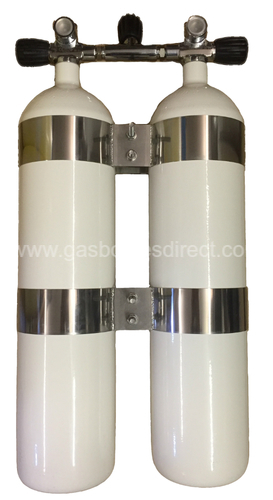

Twin set 2x 8/300 bar with complete manifold and stainless steel tank bands

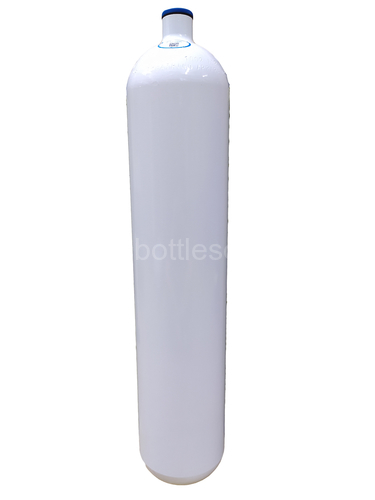

Cylinder specification:

  • capacity: 8 liters
  • working pressure: 300 bar
  • testing pressure: 450 bar
  • diameter: 140 mm
  • bottom: convex
  • length (without valve): 680 mm
  • weight of cylinder: cca 11,2 kg
  • thread: M25x2
  • color: white
  • date of manufacture 05/2022

Cylinders have European Certificate – Declaration of Conformity by Tüv Süd Czech s.r.o.

Valves:

  • Complete manifold for twin
  • Bar 300
  • For bottles with diameter 140 mm
  • Thread M25x2
  • Connection DIN/INT G5/8"
  • Rubber handwheel
  • Nitrox clean

Tank bands:

  • Diameter 140 mm/manifold 171 mm
  • Width 60 mm
  • 2 screws

Twin sets are shipped separately because of a risk of damaging assembled valves!

Volume8 l
Diameter140 mm
Working pressure300 bar
Test pressure450 bar
Weight11,2 kg
Bottomconvex
ThreadM25x2
