Twin set 2 x 10L/300 bar DIR

Twin set 2x 10/300 bar with complete manifold and stainless steel tank bands.
Show more
540,28 €
pc
Add to Cart
In Stock
List Number: TWIN10/300DIR
Warranty:24 months
Manufacturer:VITKOVICE CYLINDERS a.s.
Price excluding VAT:446,51 €
Description
Parametres
Files and Links

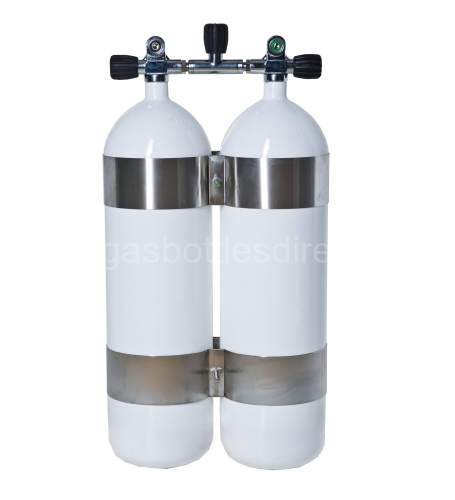

Twin set 2x 10/300 bar with complete manifold and stainless steel tank bands

Cylinder specification:

  • capacity: 10 liters
  • working pressure: 300 bar
  • testing pressure: 450 bar
  • diameter: 178 mm
  • bottom: convex
  • length (without valve): 575 mm
  • weight of cylinder: 14,2 - 14,5 kg
  • thread: M25x2
  • color: white

Cylinders have European Certificate – Declaration of Conformity by Tüv Süd Czech s.r.o.

Valves:

  • Complete manifold for twin
  • Bar 300
  • For bottles with diameter 178 mm
  • Thread M25x2
  • Connection DIN/INT G5/8"
  • Rubber handwheel
  • Nitrox clean

Tank bands:

  • Diameter 178mm
  • Width 60 mm
  • 2 screws

Twin sets are shipped separately because of a risk of damaging assembled valves!



Volume10 l
Diameter178 mm
Working pressure230 bar
Test pressure450 bar
Weight14,2 - 14,5 kg
Bottomconvex
ThreadM25x2
