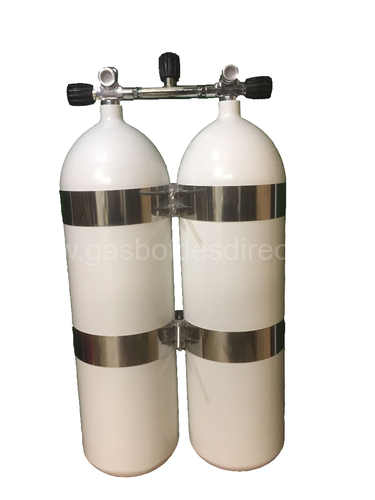

Twin set 2 x 20L/230 bar DIR

Twin set 2x 20L 230 bar with complete manifold and stainless steel tank bands.
Show more
635,54 €
pc
Add to Cart
Temporarily Unavailable

Watch product availability

List Number: TWIN20/230/DIR
Warranty:24 months
Manufacturer:VITKOVICE CYLINDERS a.s.
Price excluding VAT:525,24 €
Description
Parametres
Files and Links

Twin set with complete manifold and stainless steel tank bands.



CYLINDER SPECIFICATIONS:

  • Cylinder: 20L
  • Diameter: 204 mm
  • Length: 785 mm - without valve
  • Weight p/cylinder: 21,5 kg
  • Bar 230
  • Thread M25x2
  • Convex bottom
  • Color: white

Valve

  • Complete manifold for twin
  • Bar 232
  • For bottles with diameter 204 mm
  • Thread M25x2
  • Connection DIN/INT G5/8"
  • Rubber handwheel
  • Nitrox clean

Tank bands

  • Diameter 204 mm

  • Width 60 mm

  • 2 screws

Twin sets are shipped separately because of a risk of damaging assembled valves!

Volume20 l
Diameter204 mm
Working pressure230 bar
Test pressure345 bar
Weight21,5 kg
Bottomconvex
ThreadM25x2
