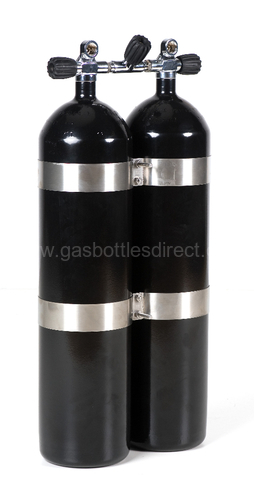

Twin set 2 x 12L/230 bar/171 mm/concave DIR Black

Twin set 2x 12 L with complete manifold and stainless steel tank bands.
Show more
550,02 €
pc
Add to Cart
Temporarily Unavailable

Watch product availability

List Number: twin_2x12_171_v_black
Warranty:24 months
Manufacturer:VITKOVICE CYLINDERS a.s.
Price excluding VAT:454,56 €
Description
Parametres
Files and Links

Twin set with complete manifold and stainless steel tank bands

Cylinder specification:

  • capacity: 12 liters
  • working pressure: 230 bar
  • testing pressure: 345 bar
  • diameter: 171 mm
  • bottom: concave
  • length (without valve): 685 mm
  • weight of cylinder: 14,2-14,3 kg
  • thread: M25x2
  • color: black

Cylinders have European Certificate – Declaration of Conformity by Tüv Süd Czech s.r.o.

Valves:

  • Complete manifold for twin
  • Bar 232
  • For bottles with diameter 171 mm
  • Thread M25x2
  • Connection DIN/INT G5/8"
  • Rubber handwheel
  • Nitrox clean

Tank bands:

  • Diameter 171 mm
  • Width 60 mm
  • 2 screws

Twin sets are shipped separately because of a risk of damaging assembled valves!


Volume12 l
Diameter171 mm
Working pressure230 bar
Test pressure345 bar
Weight14,2-14,3 kg
Bottomconcave
ThreadM25x2
