12L/ 230 bar/ convex cylinder_171 mm, with double valve "H"

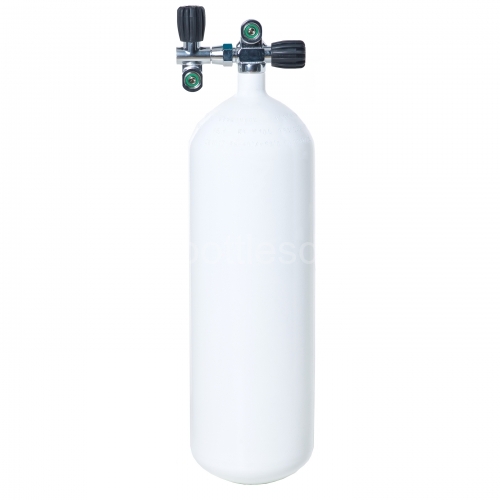

Steel scuba cylinder 12 L/ 230 bar with convex bottom, diameter 171 mm, with double valve "H".
Show more
254,34 €
pc
Add to Cart
Temporarily Unavailable

Watch product availability

List Number: 12L/230/CONV/171/DOUB
Warranty:24 months
Manufacturer:VITKOVICE CYLINDERS a.s.
Price excluding VAT:210,20 €
Description
Parametres
Files and Links

Cylinder specification:

  • capacity: 12 liters
  • working pressure: 230 bar
  • testing pressure: 345 bar
  • diameter: 171 mm
  • bottom: convex
  • length (without valve): 695 mm
  • weight of cylinder: 13,1 - 13,6 kg
  • thread: M25x2
  • color: white

Cylinders have European Certificate – Declaration of Conformity by Tüv Süd Czech s.r.o.

Valve specification:

  • double valve "H"
  • working pressure: 232 bar
  • thread: M25x2
  • connection: DIN G5/8" (+ DIN to INT adaptor)
  • rubber handwheel
  • Nitrox clean: up to 40% O2
  • producer: San-o-Sub



Volume12 l
Diameter171 mm
Working pressure230 bar
Test pressure345 bar
Weight13,1 - 13,6 kg
Bottomconvex
ThreadM25x2
