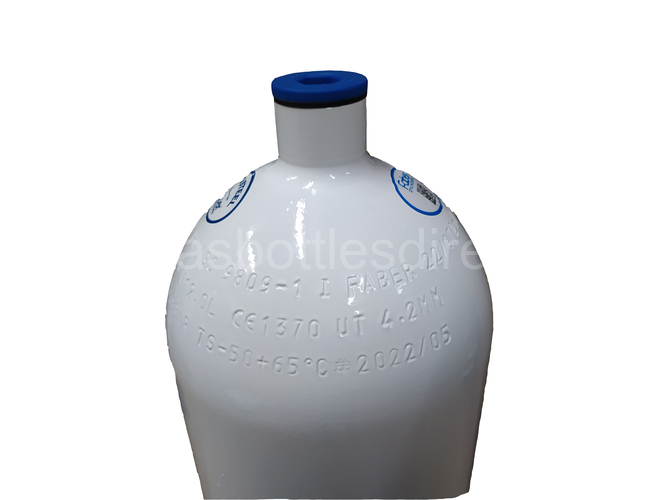

12L/ 230 bar/ convex cylinder_171 mm with double valve "H" FABER

Cylinder specification:

• capacity: 12 liters
• working pressure: 230 bar
• testing pressure: 345 bar
• diameter: 171 mm
• bottom: convex
• length (without valve): 670 mm
• weight of cylinder: 13,3 kg
• thread: M25x2
• color: white

*If your ordered cylinders are suposed to be a twin set, please write it in the note.

Cylinders have European Certificate – Declaration of Conformity by Tüv Süd Czech s.r.o.

Valve specification:

• double valve "H"
• working pressure: 232 bar
• thread: M25x2
• connection: DIN G5/8" (+ DIN to INT adaptor)
• rubber handwheel
• Nitrox clean: up to 40% O2
• producer: San-o-Sub
