Data sheet
| Water Capacity | 2 litres |
| Working Pressure | 200 bar |
| Test Pressure | 300 bar |
| Length (Nominal) | 355 mm |
| Weight (Nominal) | 3,8 kg including neckring |
| Diameter (Nominal) | 100 mm |
| Design Standard | EN ISO 9809-1:2010 |
| Approval | TPED 2010/35/EU with PI (π) marking |
| Material | Steel 34CrMo4 |
| Bottom Shape | Concave |
| Neck Thread | 17E EN ISO 11116-1 |
| Neckring | Zinc plated W80 |
| Painting | Grey RAL 7037 |

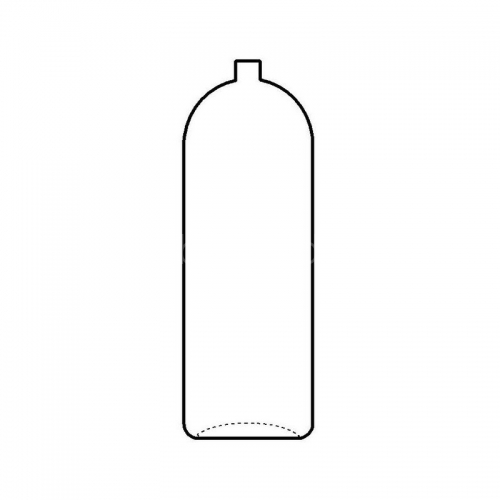

Steel cylinder for technical gases - Argon, Nitrogen, Oxygen, Helium, Air and their mixtures.
Cylinders are painted with primer and top coating. Body and Shoulder are painted in Grey colour RAL 7037.
Cylinders are manufactured and tested according to EN ISO 9809-1 and approved according to TPED (Transportable Pressure Equipment Directive) 2010/35/EU with PI (π) marking allowing the cylinders to be used, transported and filled all over the European Union.
Cylinder material: Chrome Molybdenum Steel 34CrMo4.
Oxygen clean.
Gas service is not stamped on the cylinder shoulder.
Neck Thread: 17E (W19,8 x 1/14´´).
Plugged with plastic plug.
Without neck ring.
Valves are available upon request, depending on gas type and country of use. Residual pressure valves (RPV) available.
Cylinder retest period is 10 years.
| Volume | 2 l |
|---|---|
| Diameter | 100 mm |
| Working pressure | 200 bar |
| Test pressure | 300 bar |
| Weight | 3,8 kg |
| Bottom | concave |
| Thread | 17E EN ISO 11116-1 |
