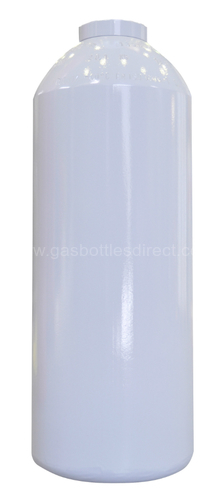

Cylinder 20 L for medical oxygen 200 bar

Steel cylinder for Medical Oxygen Working pressure: 200 bar Test pressure: 300 bar
Show more
250,00 €
Add to Cart
In Stock
Manufacturer:VITKOVICE CYLINDERS a.s.
Price excluding VAT:206,61 €
Description
Parametres
Files and Links

Data sheet

Water Capacity 20 litres
Working Pressure 200 bar
Test Pressure 300 bar
Length (Nominal) 795 mm
Weight (Nominal) 32 kg
Diameter (Nominal) 204 mm
Design Standard EN ISO 9809-1:2010
Approval TPED 2010/35/EU with PI (π) marking
Material Steel 34CrMo4
Bottom Shape Concave
Neck Thread 25E (W28,8 x 1/14´´)
Neckring Zinc Plated W80
Painting White RAL 9010
Volume20 l
Diameter204 mm
Working pressure200 bar
Test pressure300 bar
Weight34 kg
Bottomconcave
Thread25E (W28,8 x 1/14´´)
