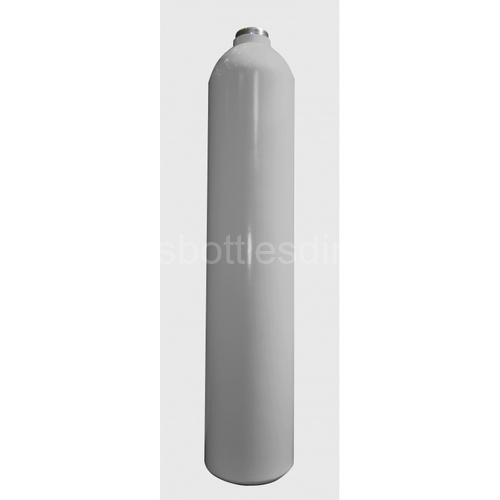

Cylinder 10 L for Medical Oxygen 200 bar

Steel cylinder for Medical Oxygen. Working pressure: 200 bar Test pressure: 300 bar
Show more
200,00 €
Add to Cart
In Stock
Price excluding VAT:165,29 €
Description
Parametres
Files and Links

Data sheet

Bottom concave
Water Capacity 10 litres
Working Pressure 200 bar
Test Pressure 300 bar
Length (Nominal) 1175 mm
Weight (Nominal) 11,9 kg
Diameter (Nominal) 140 mm
Design Standard EN ISO 9809-1:2010
Approval TPED 2010/35/EU with PI (π) marking
Material Steel 34CrMo4
Bottom Shape Concave
Neck Thread 25E (W28,8 x 1/14´´)
Neckring Zinc plated W80
Painting White RAL 9010

Cylinders are painted with primer and top coating. Body and Shoulder in White colour RAL 9010.

Cylinders are manufactured and tested according to EN ISO 9809-1 or ISO 9809-2 and approved according to TPED (Transportable Pressure Equipment Directive) 2010/35/EU with PI (π) marking allowing the cylinders to be used, transported and filled all over European Union.

Cylinder material: Chrome Molybdenum Steel 34CrMo4.
Oxygen clean.
Gas service is not stamped on the cylinder shoulder.
Neck Thread: 25E (W28,8 x 1/14´´).
Plugged with plastic plug.
Neck ring is zinc plated with W80 external thread for protective cap.
Zinc plated protective caps or tulip guards are available upon request.
Valves are available upon request, depending on country of use.
Cylinder retest period is 10 years.

Date of next periodic retest 09/2028.

Volume10 l
Diameter140 mm
Working pressure200 bar
Test pressure300 bar
Weight11,9 kg
Bottomconcave
Thread25E (W28,8 x 1/14´´)
