50 L 300 bar - kopie

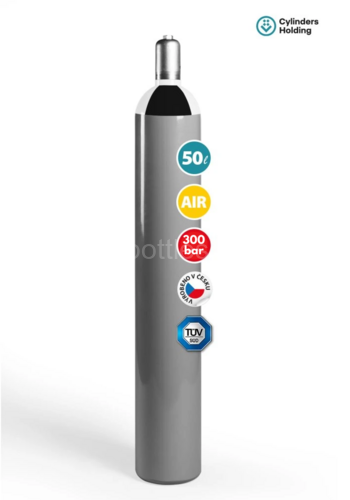

Steel cylinder for technical gases - Argon, Oxygen, Nitrogen, Helium, Air and their mixtures.
Zobrazit více
554,18 €
vložit do košíku
Skladem
výrobce:VITKOVICE CYLINDERS a.s.
cena bez DPH:458,00 €
popis
parametry
soubory a odkazy

Data sheet

Water Capacity 50 litres
Working Pressure 300 bar
Test Pressure 450 bar
Length (Nominal) 1515 mm
Weight (Nominal) 64 kg
Diameter (Nominal) 229 mm
Design Standard EN ISO 9809-2:2010
Approval TPED 2010/35/EU with PI (π) marking
Material Steel 34CrMo4
Bottom Shape Concave
Neck Thread 25E (W28,8 x 1/14´´)
Neckring Zinc plated W80
Painting Grey RAL 7037

Steel cylinder for technical gases - Argon, Oxygen, Nitrogen, Helium, Air and their mixtures.
Cylinders are painted with primer and top coating. Body and Shoulder in Grey colour RAL 7037.
Cylinders are manufactured and tested according to EN ISO 9809-2 and approved according to TPED (Transportable Pressure Equipment Directive) 2010/35/EU with PI (π) marking allowing the cylinders to be used, transported and filled all over European Union.

Cylinder material: Chrome Molybdenum Steel 34CrMo4.

Oxygen clean.

Gas service is not stamped on the cylinder shoulder.

Neck Thread: 25E (W28,8 x 1/14´´).

Plugged with plastic plug.

Neck ring is zinc plated with W80 external thread for protective cap.

Zinc plated protective caps or tulip guards are available upon request.

Valves are available upon request, depending on gas type and country of use. Residual pressure valves (RPV) available.

Cylinder retest period is 10 years.
