20 L 200 bar - kopie

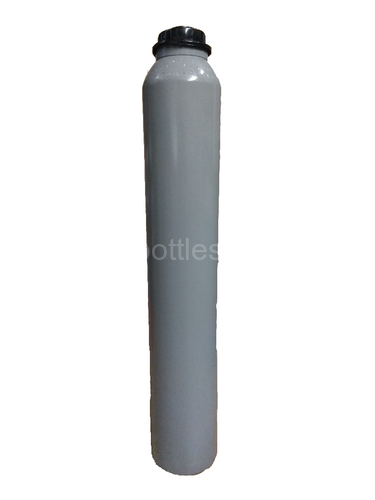

Steel cylinder for technical gases - Argon, Oxygen, Nitrogen, Helium, Air and their mixtures.

Cylinders are painted with primer and top coating. Body and Shoulder in Grey colour RAL 7037.

Cylinders are manufactured and tested according to EN ISO 9809-2 and approved according to TPED (Transportable Pressure Equipment Directive) 2010/35/EU with PI (π) marking allowing the cylinders to be used and filled all over European Union.

Cylinder material: Chrome Molybdenum Steel 34CrMo4.

Oxygen clean.

Gas service is not stamped on the cylinder shoulder.

Neck Thread: 25E (W28,8 x 1/14´´).

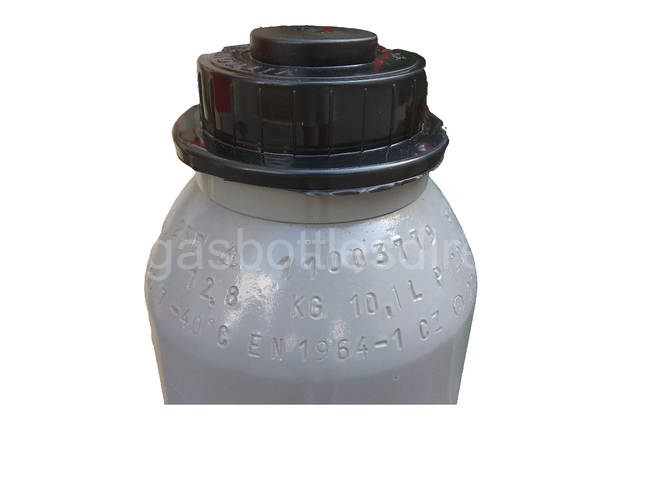

Plugged with plastic plug.

Neck ring is zinc plated with W80 external thread for protective cap.

Zinc plated protective caps or tulip guards are available upon request.

Valves are available upon request, depending on gas type and country of use. Residual pressure valves (RPV) available.

Cylinder retest period is 10 years.
